简介

上一篇介绍了多尺度图片滑动窗口输出，如果要在新win窗口下显示当前的滑动窗口图片，那么怎么设置呢？或者将滑动窗口的图片裁剪下来，发现使用

region = (10,0,300,100)#box = (left, top, left+width, top+height),(x0,y0,x1,y1),from W,H
cropImg = img.crop(region)

这样的命令，不成功，numpy has no crop，后来发现先拷贝一份img的数据，使用

cropImg_clone = resized.copy()

注意，其所对应的W、H

cropImg = cropImg_clone[y: (y + winH),x:(x + winW)]#H,W

代码

'''
Created on 2017年8月19日
@author: XT
'''
# import the necessary packages
import helpers
import time
import cv2


# load the image and define the window width and height
image = cv2.imread('../image/cat2.jpg')
(winW, winH) = (200, 128)
i = 0

# loop over the image pyramid
for resized in helpers.pyramid(image, scale=1.5):
    # loop over the sliding window for each layer of the pyramid
    for (x, y, window) in helpers.sliding_window(resized, stepSize=32, windowSize=(winW, winH)):
        # if the window does not meet our desired window size, ignore it
        if window.shape[0] != winH or window.shape[1] != winW:
            continue

        # THIS IS WHERE YOU WOULD PROCESS YOUR WINDOW, SUCH AS APPLYING A
        # MACHINE LEARNING CLASSIFIER TO CLASSIFY THE CONTENTS OF THE
        # WINDOW

        # since we do not have a classifier, we'll just draw the window
        clone = resized.copy()
        cropImg_clone = resized.copy()
        cv2.rectangle(clone, (x, y), (x + winW, y + winH), (0, 255, 0), 2)
        cropImg = cropImg_clone[y: (y + winH),x:(x + winW)]#H,W
        cv2.imshow("Window", clone)
        cv2.imshow("cropImg", cropImg)
        cv2.waitKey(1)
        #write
#         WinName = "Layer {}".format(i + 1)
#         cv2.imwrite('./'+WinName+'.jpg',clone)
#         i += 1
        time.sleep(0.125)

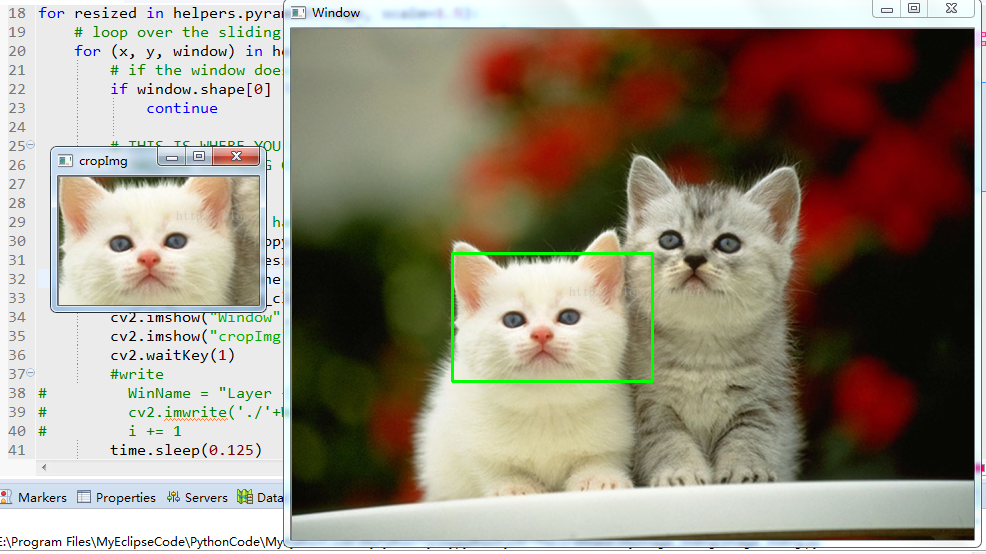

效果

参考

【1】多尺度图片滑动窗口输出 - Alex_XT的博客 - CSDN博客
http://blog.csdn.net/u011463646/article/details/77417049
