1、Kafka Offset 管理–Checkpoint

1. 启用Spark Streaming的checkpoint是存储偏移量最简单的方法。
2. 流式checkpoint专门用于保存应用程序的状态， 比如保存在HDFS上，
   在故障时能恢复。
3. Spark Streaming的checkpoint无法跨越应用程序进行恢复。
4. Spark 升级也将导致无法恢复。
5. 在关键生产应用， 不建议使用spark检查点的管理offset方式。

代码如下：

/**
  * 用checkpoint记录offset
  * 优点：实现过程简单
  * 缺点：如果streaming的业务更改，或别的作业也需要获取该offset，是获取不到的
  */
import kafka.serializer.StringDecoder
import org.apache.spark.SparkConf
import org.apache.spark.streaming.kafka.KafkaUtils
import org.apache.spark.streaming.{Duration, Seconds, StreamingContext}

object StreamingWithCheckpoint {
  def main(args: Array[String]) {
    //val Array(brokers, topics) = args
    val processingInterval = 2
    val brokers = "node01:9092,node02:9092,node03:9092"
    val topics = "mytest1"
    // Create context with 2 second batch interval
    val sparkConf = new SparkConf().setAppName("ConsumerWithCheckPoint").setMaster("local[2]")
    // Create direct kafka stream with brokers and topics
    val topicsSet = topics.split(",").toSet
    val kafkaParams = Map[String, String]("metadata.broker.list" -> brokers, "auto.offset.reset" -> "smallest")
    val checkpointPath = "hdfs://node01:9000/spark_checkpoint1"

    def functionToCreateContext(): StreamingContext = {
      val ssc = new StreamingContext(sparkConf, Seconds(processingInterval))
      val messages = KafkaUtils.createDirectStream[String, String, StringDecoder, StringDecoder](ssc, kafkaParams, topicsSet)

      ssc.checkpoint(checkpointPath)
      messages.checkpoint(Duration(8 * processingInterval.toInt * 1000))
      messages.foreachRDD(rdd => {
        if (!rdd.isEmpty()) {
          println("################################" + rdd.count())
        }

      })
      ssc
    }

    // 如果没有checkpoint信息，则新建一个StreamingContext
    // 如果有checkpoint信息，则从checkpoint中记录的信息恢复StreamingContext
    // createOnError参数：如果在读取检查点数据时出错，是否创建新的流上下文。
    // 默认情况下，将在错误上引发异常。
    val context = StreamingContext.getOrCreate(checkpointPath, functionToCreateContext _)
    context.start()
    context.awaitTermination()
  }
}
// 以上案例测试过程：
// 模拟消费者向mytest1插入10条数据，
// 强制停止streaming，
// 再插入20条数据并启动streaming查看读取的条数为20条

2、Kafka Offset 管理–Zookeeper

1. 路径：
   val zkPath = s"{kakfaOffsetRootPath}/{groupName}/{o.topic}/{o.partition}"
2. 如果Zookeeper中未保存offset,根据kafkaParam的配置使用最新或者最旧的offset
3. 如果 zookeeper中有保存offset,我们会利用这个offset作为kafkaStream的起始位置

代码如下：

import kafka.common.TopicAndPartition
import kafka.message.MessageAndMetadata
import kafka.serializer.StringDecoder
import org.apache.curator.framework.CuratorFrameworkFactory
import org.apache.curator.retry.ExponentialBackoffRetry
import org.apache.spark.SparkConf
import org.apache.spark.streaming.dstream.InputDStream
import org.apache.spark.streaming.kafka.{HasOffsetRanges, KafkaUtils, OffsetRange}
import org.apache.spark.streaming.{Seconds, StreamingContext}

import scala.collection.JavaConversions._

object KafkaZKManager  extends Serializable{
  /**
    * 创建zookeeper客户端
    */
  val client = {
    val client = CuratorFrameworkFactory
      .builder
      .connectString("node01:2181/kafka0.9") // zk中kafka的路径
      .retryPolicy(new ExponentialBackoffRetry(1000, 3)) // 重试指定的次数, 且每一次重试之间停顿的时间逐渐增加
      .namespace("mykafka") // 命名空间:mykafka
      .build()
    client.start()
    client
  }

  val kafkaOffsetRootPath = "/consumers/offsets"

  /**
    * 确保zookeeper中的路径是存在的
    * @param path
    */
  def ensureZKPathExists(path: String): Unit = {
    if (client.checkExists().forPath(path) == null) {
      client.create().creatingParentsIfNeeded().forPath(path)
    }
  }

  def storeOffsets(offsetsRanges:Array[OffsetRange], groupName:String) = {
    for (o <- offsetsRanges) {
      val zkPath = s"${kafkaOffsetRootPath}/${groupName}/${o.topic}/${o.partition}"
      ensureZKPathExists(zkPath)
      // 保存offset到zk
      client.setData().forPath(zkPath, o.untilOffset.toString.getBytes())
    }
  }

  /**
    * 用于获取offset
    * @param topic
    * @param groupName
    * @return
    */
  def getFromOffsets(topic : String,groupName : String): (Map[TopicAndPartition, Long], Int) = {
    // 如果 zookeeper中有保存offset,我们会利用这个offset作为kafkaStream 的起始位置
    var fromOffsets: Map[TopicAndPartition, Long] = Map()
    val zkTopicPath = s"${kafkaOffsetRootPath}/${groupName}/${topic}"
    // 确保zookeeper中的路径是否存在
    ensureZKPathExists(zkTopicPath)
 	// 获取topic中，各分区对应的offset
    val offsets: mutable.Buffer[(TopicAndPartition, Long)] = for {
      // 获取分区
      p <- client.getChildren.forPath(zkTopicPath)
    } yield {
      //遍历路径下面的partition中的offset
      val data = client.getData.forPath(s"$zkTopicPath/$p")
      //将data变成Long类型
      val offset = java.lang.Long.valueOf(new String(data)).toLong
      println("offset:" + offset)
      (TopicAndPartition(topic, Integer.parseInt(p)), offset)
    }

    if(offsets.isEmpty) {
      (offsets.toMap,0)
    }else{
      (offsets.toMap,1)
    }
  }

  def main(args: Array[String]): Unit = {
    val processingInterval = 2
    val brokers = "node01:9092,node02:9092,node03:9092"
    val topic = "mytest1"
    val sparkConf = new SparkConf().setAppName("KafkaZKManager").setMaster("local[2]")
    // Create direct kafka stream with brokers and topics
    val topicsSet = topic.split(",").toSet
    val kafkaParams = Map[String, String]("metadata.broker.list" -> brokers,
      "auto.offset.reset" -> "smallest")

    val ssc = new StreamingContext(sparkConf, Seconds(processingInterval))

    // 读取kafka数据
    val messages = createMyDirectKafkaStream(ssc, kafkaParams, topic, "group01")

    messages.foreachRDD((rdd,btime) => {
      if(!rdd.isEmpty()){
        println("==========================:" + rdd.count() )
        println("==========================btime:" + btime )
      }
      // 消费到数据后，将offset保存到zk
      storeOffsets(rdd.asInstanceOf[HasOffsetRanges].offsetRanges, "group01")
    })

    ssc.start()
    ssc.awaitTermination()
   }

  def createMyDirectKafkaStream(ssc: StreamingContext, kafkaParams: Map[String, String], topic: String, groupName: String): InputDStream[(String, String)] = {
    // 获取offset
    val (fromOffsets, flag) = getFromOffsets( topic, groupName)
    var kafkaStream : InputDStream[(String, String)] = null
    if (flag == 1) {
      // 这个会将kafka的消息进行transform,最终kafak的数据都会变成(topic_name, message)这样的tuple
      val messageHandler = (mmd : MessageAndMetadata[String, String]) => (mmd.topic, mmd.message())
      println("fromOffsets:" + fromOffsets)
      kafkaStream = KafkaUtils.createDirectStream[String, String, StringDecoder, StringDecoder, (String, String)](ssc, kafkaParams, fromOffsets, messageHandler)
    } else {
      // 如果未保存,根据kafkaParam的配置使用最新或者最旧的offset
      kafkaStream = KafkaUtils.createDirectStream[String, String, StringDecoder, StringDecoder](ssc, kafkaParams, topic.split(",").toSet)
    }
    kafkaStream
  }

}

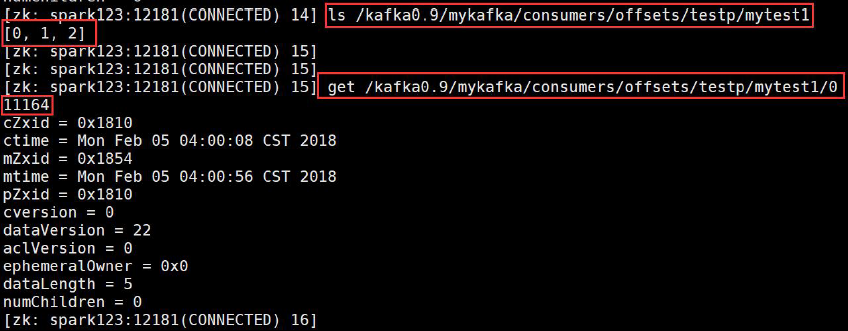

启动zk命令：node1为master节点

zkCli.sh  -timeout 5000  -r  -server  node1:2181

3、Kafka Offset 管理–Hbase

1. 基于Hbase的通用设计， 使用同一张表保存可以跨越多个spark streaming程序的topic的offset

2. rowkey = topic名称 + groupid + streaming的batchtime.milliSeconds . 尽管
   batchtime.milliSeconds不是必须的， 但是它可以看到历史的批处理任务对offset的管理情况。

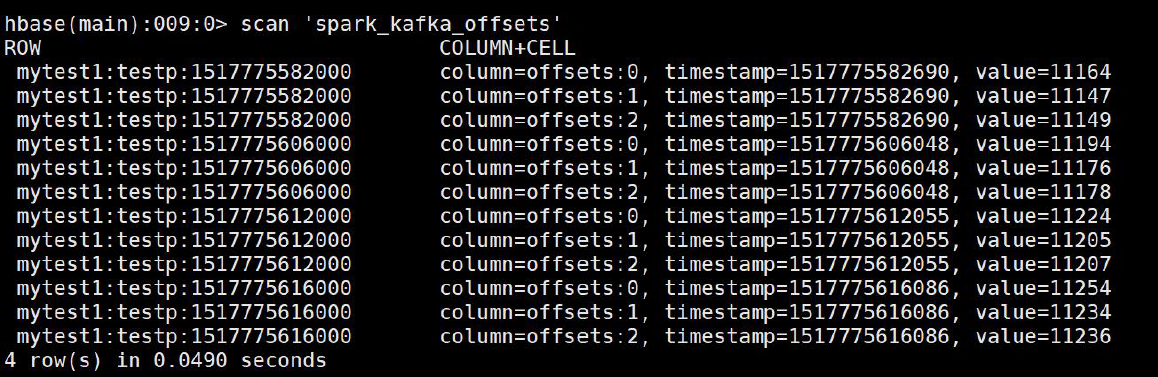

3. kafka的offset保存在下面的表中,列簇为offsets， 30天后自动过期
   Hbase表结构：后面的时间为秒级
   create ‘spark_kafka_offsets’, {NAME=>‘offsets’, TTL=>2592000}

4. offset的获取场景
   场景1：Streaming作业首次启动。 通过zookeeper来查找给定topic中分区的数量，然后返回“0”
   作为所有topic分区的offset。
   场景2：长时间运行的Streaming作业已经停止，新的分区被添加到kafka的topic中。 通过
   zookeeper来查找给定topic中分区的数量， 对于所有旧的topic分区，将offset设置为HBase中的最新偏移量。 对于所有新的topic分区，它将返回“0”作为offset。
   场景3：长时间运行的Streaming作业已停止，topic分区没有任何更改。 在这种情况下，HBase
   中发现的最新偏移量作为每个topic分区的offset返回。

   代码如下

import kafka.common.TopicAndPartition
import kafka.message.MessageAndMetadata
import kafka.serializer.StringDecoder
import kafka.utils.ZkUtils
import org.apache.hadoop.hbase.client.{ConnectionFactory, Put, Scan}
import org.apache.hadoop.hbase.util.Bytes
import org.apache.hadoop.hbase.{HBaseConfiguration, TableName}
import org.apache.spark.SparkConf
import org.apache.spark.streaming.dstream.InputDStream
import org.apache.spark.streaming.kafka.{HasOffsetRanges, KafkaUtils, OffsetRange}
import org.apache.spark.streaming.{Seconds, StreamingContext}

object KafkaHbaseManager {
  // 保存offset到hbase
  def saveOffsets(TOPIC_NAME: String, GROUP_ID: String, offsetRanges: Array[OffsetRange],
                  hbaseTableName: String, batchTime: org.apache.spark.streaming.Time) = {
    val hbaseConf = HBaseConfiguration.create()
    val conn = ConnectionFactory.createConnection(hbaseConf)
    val table = conn.getTable(TableName.valueOf(hbaseTableName))
    val rowKey = TOPIC_NAME + ":" + GROUP_ID + ":" + String.valueOf(batchTime.milliseconds)
    val put = new Put(rowKey.getBytes())
    for (offset <- offsetRanges) {
      put.addColumn(Bytes.toBytes("offsets"), Bytes.toBytes(offset.partition.toString),
        Bytes.toBytes(offset.untilOffset.toString))
    }
    table.put(put)
    conn.close()
  }

  // 从zookeeper中获取topic的分区数
  def getNumberOfPartitionsForTopicFromZK(TOPIC_NAME: String, GROUP_ID: String,
                                          zkQuorum: String, zkRootDir: String, sessTimeout: Int, connTimeOut: Int): Int = {
    val zkUrl = zkQuorum + "/" + zkRootDir
    val zkClientAndConn = ZkUtils.createZkClientAndConnection(zkUrl, sessTimeout, connTimeOut)
    val zkUtils = new ZkUtils(zkClientAndConn._1, zkClientAndConn._2, false)
    // 获取分区数量
    val zkPartitions = zkUtils.getPartitionsForTopics(Seq(TOPIC_NAME)).get(TOPIC_NAME).toList.head.size
    println(zkPartitions)
    zkClientAndConn._1.close()
    zkClientAndConn._2.close()
    zkPartitions
  }

  // 获取hbase的offset
  def getLastestOffsets(TOPIC_NAME: String, GROUP_ID: String, hTableName: String,
                        zkQuorum: String, zkRootDir: String, sessTimeout: Int, connTimeOut: Int): Map[TopicAndPartition, Long] = {

    // 连接zk获取topic的partition数量
    val zKNumberOfPartitions = getNumberOfPartitionsForTopicFromZK(TOPIC_NAME, GROUP_ID, zkQuorum, zkRootDir, sessTimeout, connTimeOut)

    val hbaseConf = HBaseConfiguration.create()

    // 获取hbase中最后提交的offset
    val conn = ConnectionFactory.createConnection(hbaseConf)
    val table = conn.getTable(TableName.valueOf(hTableName))
    val startRow = TOPIC_NAME + ":" + GROUP_ID + ":" + String.valueOf(System.currentTimeMillis())
    val stopRow = TOPIC_NAME + ":" + GROUP_ID + ":" + 0
    val scan = new Scan()
    val scanner = table.getScanner(scan.setStartRow(startRow.getBytes).setStopRow(stopRow.getBytes).setReversed(true))
    val result = scanner.next()

    var hbaseNumberOfPartitions = 0 // 在hbase中获取的分区数量
    if (result != null) {
      // 将分区数量设置为hbase表的列数量
      hbaseNumberOfPartitions = result.listCells().size()
    }

    val fromOffsets = collection.mutable.Map[TopicAndPartition, Long]()
    if (hbaseNumberOfPartitions == 0) { // 如果没有保存过offset
      // 初始化kafka为开始
      for (partition <- 0 until zKNumberOfPartitions) {
        fromOffsets += ((TopicAndPartition(TOPIC_NAME, partition), 0))
      }

    } else if (zKNumberOfPartitions > hbaseNumberOfPartitions) { // 如果zk的partition数量大于hbase的partition数量，说明topic增加了分区，就需要对分区做单独处理
      // 处理新增加的分区添加到kafka的topic
      for (partition <- 0 until zKNumberOfPartitions) {
        val fromOffset = Bytes.toString(result.getValue(Bytes.toBytes("offsets"),
          Bytes.toBytes(partition.toString)))
        fromOffsets += ((TopicAndPartition(TOPIC_NAME, partition), fromOffset.toLong))
      }
      // 对新增加的分区将它的offset值设为0
      for (partition <- hbaseNumberOfPartitions until zKNumberOfPartitions) {
        fromOffsets += ((TopicAndPartition(TOPIC_NAME, partition), 0))
      }
    } else { // 如果既没有新增加的分区，也不是第一次运行
      // 获取上次运行的offset
      for (partition <- 0 until hbaseNumberOfPartitions) {
        val fromOffset = Bytes.toString(result.getValue(Bytes.toBytes("offsets"),
          Bytes.toBytes(partition.toString)))
        fromOffsets += ((TopicAndPartition(TOPIC_NAME, partition), fromOffset.toLong))
      }
    }

    scanner.close()
    conn.close()
    fromOffsets.toMap
  }

  def main(args: Array[String]): Unit = {
    val processingInterval = 2
    val brokers = "node01:9092,node02:9092,node03:9092"
    val topics = "mytest1"
    // Create context with 2 second batch interval
    val sparkConf = new SparkConf().setAppName("kafkahbase").setMaster("local[2]")
    // Create direct kafka stream with brokers and topics
    val topicsSet = topics.split(",").toSet
    val kafkaParams = Map[String, String]("metadata.broker.list" -> brokers,
      "auto.offset.reset" -> "smallest")

    val ssc = new StreamingContext(sparkConf, Seconds(processingInterval))
    val groupId = "testp"
    val hbaseTableName = "spark_kafka_offsets"

    // 获取kafkaStream
    //val kafkaStream = createMyDirectKafkaStream(ssc, kafkaParams, zkClient, topicsSet, "testp")
    val messageHandler = (mmd: MessageAndMetadata[String, String]) => (mmd.topic, mmd.message())
    // 获取offset
    val fromOffsets = getLastestOffsets("mytest1", groupId, hbaseTableName, "node01:2181,node02:2181,node03:2181", "kafka0.9", 30000, 30000)

    var kafkaStream: InputDStream[(String, String)] = null
    kafkaStream = KafkaUtils.createDirectStream[String, String, StringDecoder, StringDecoder, (String, String)](ssc, kafkaParams, fromOffsets, messageHandler)

    kafkaStream.foreachRDD((rdd, btime) => {
      if (!rdd.isEmpty()) {
        println("==========================:" + rdd.count())
        println("==========================btime:" + btime)
        saveOffsets(topics, groupId, rdd.asInstanceOf[HasOffsetRanges].offsetRanges, hbaseTableName, btime)
      }

    })

    ssc.start()
    ssc.awaitTermination()
  }
}

4、Kafka Offset 管理–Kafka本身

stream.foreachRDD { rdd =>

val offsetRanges =

rdd.asInstanceOf[HasOffsetRanges].offsetRanges

// some time later, after outputs have completed

stream.asInstanceOf[CanCommitOffsets].commitAsync(off

setRanges)

}

kafka自己管理offset官网链接：

http://spark.apache.org/docs/latest/streaming-kafka-0-10-integration.html#kafka-itself

5、Kafka Offset 管理–HDFS

1. 可以将offset保存在HDFS上
2. 与其他系统（Zookeeper、Hbase）相比， HDFS具有更高
   的延迟。 此外， 如果管理不当， 在HDFS上写入每个批次的
   offsetRanges可能会导致小文件问题
