rabbitmq+haproxy+keepalived(搭建高可用RabbitMQ镜像模式集群)

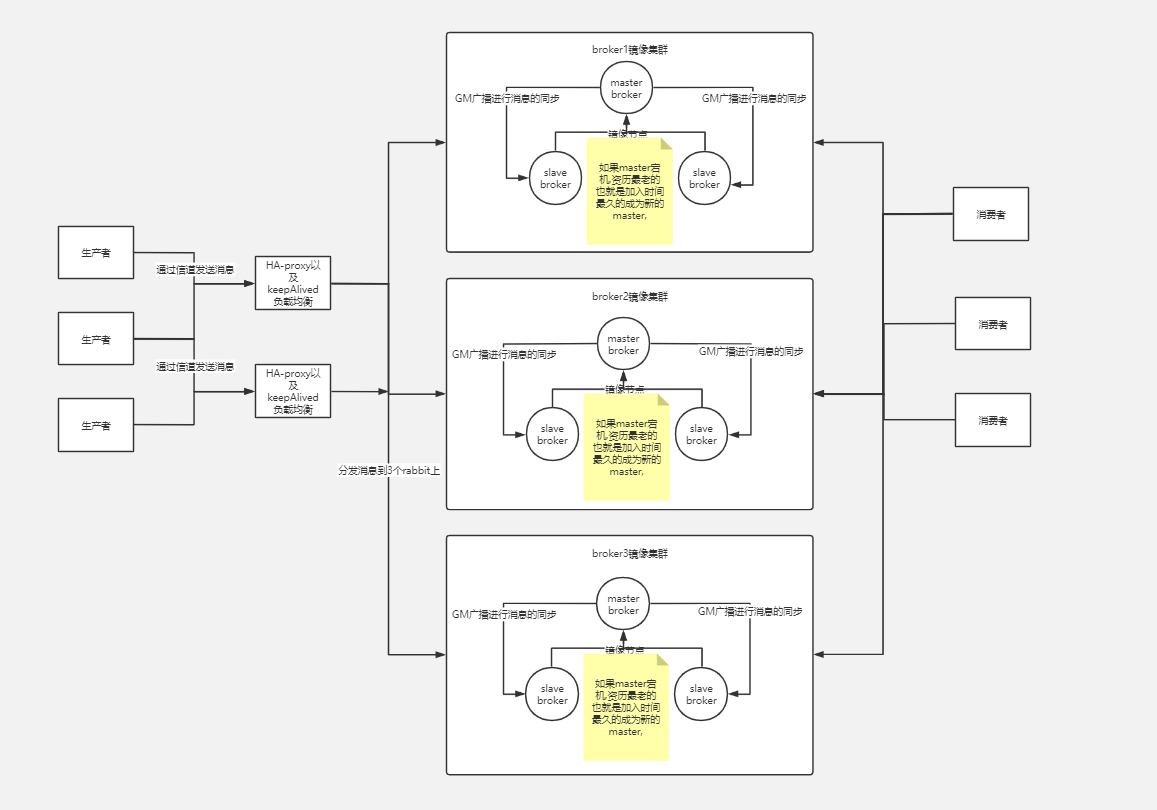

在这里插入图片描述

1、环境准备

3台centos7操作系统，ip分别为：
192.168.122.124
192.168.122.66
192.168.122.122

2、修改 hosts 文件 (3 台)

[root@rabbitmq01 ~]# getenforce
Disabled
[root@rabbitmq01 ~]# systemctl status firewalld.service
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)
[root@rabbitmq01 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.122.124 rabbitmq01
192.168.122.66  rabbitmq02
192.168.122.122 rabbitmq03

3、保证 3 台能 ping 通 (3 台)

[root@rabbitmq01 ~]# ping  rabbitmq01
PING rabbitmq01 (192.168.122.124) 56(84) bytes of data.
64 bytes from rabbitmq01 (192.168.122.124): icmp_seq=1 ttl=64 time=0.078 ms
64 bytes from rabbitmq01 (192.168.122.124): icmp_seq=2 ttl=64 time=0.052 ms
64 bytes from rabbitmq01 (192.168.122.124): icmp_seq=3 ttl=64 time=0.052 ms

[root@rabbitmq01 ~]# ping  rabbitmq02
PING rabbitmq02 (192.168.122.66) 56(84) bytes of data.
64 bytes from rabbitmq02 (192.168.122.66): icmp_seq=1 ttl=64 time=0.595 ms
64 bytes from rabbitmq02 (192.168.122.66): icmp_seq=2 ttl=64 time=0.536 ms
64 bytes from rabbitmq02 (192.168.122.66): icmp_seq=3 ttl=64 time=0.453 ms
64 bytes from rabbitmq02 (192.168.122.66): icmp_seq=4 ttl=64 time=0.478 ms
[root@rabbitmq01 ~]# ping rabbitmq03
PING rabbitmq03 (192.168.122.122) 56(84) bytes of data.
64 bytes from rabbitmq03 (192.168.122.122): icmp_seq=1 ttl=64 time=0.800 ms
64 bytes from rabbitmq03 (192.168.122.122): icmp_seq=2 ttl=64 time=0.470 ms
64 bytes from rabbitmq03 (192.168.122.122): icmp_seq=3 ttl=64 time=0.712 ms
64 bytes from rabbitmq03 (192.168.122.122): icmp_seq=4 ttl=64 time=0.533 ms

4、安装 rabbitmq 依赖 erlang 环境 (3 台)

[root@rabbitmq1 ~]# yum install erlang

5、安装 socat (3 台)

[root@rabbitmq1 ~]# yum install -y socat

6、安装 rabbitmq (3 台)

[root@rabbitmq1 ~]# yum -y install rabbitmq-server

7、搭建 rabbitmq 的一般模式集群

在上述的 3 台机器上安装 rabbitmq 完成之后，你可以看到你的机器中有如下 1 个文件。路径在 $HOME 中或者在 /var/lib/rabbitmq 中，文件名称为.erlang.cookie, 他是一个隐藏文件。那么这文件存储的内容是什么，是做什么用的呢？
RabbitMQ 的集群是依赖 erlang 集群，而 erlang 集群是通过这个 cookie 进行通信认证的，因此我们做集群的第一步就是干 cookie。

1、统一 erlang.cookie 文件中 cookie 值

必须使集群中也就是rabbitmq02，rabbitmq03这两台机器的.erlang.cookie 文件中 cookie 值一致，且权限为 owner 只读。

# 复制 rabbitmq01 中 /var/lib/rabbitmq/.erlang.cookie 的内容到 rabbitmq02 rabbitmq03 相同的内容
[root@rabbitmq02 ~]# chmod 600 /var/lib/rabbitmq/.erlang.cookie
[root@rabbitmq03 ~]# chmod 600 /var/lib/rabbitmq/.erlang.cookie

2、启动服务(三台)

[root@rabbitmq01 ~]# systemctl enable rabbitmq-server --now
Created symlink from /etc/systemd/system/multi-user.target.wants/rabbitmq-server.service to /usr/lib/systemd/system/rabbitmq-server.service

3、查看集群状态

查看节点状态

[root@rabbitmq01 ~]# rabbitmqctl status
Status of node rabbit@rabbitmq01 ...
[{pid,1390},
 {running_applications,
     [{rabbitmq_management,"RabbitMQ Management Console","3.3.5"},
      {rabbitmq_web_dispatch,"RabbitMQ Web Dispatcher","3.3.5"},
      {webmachine,"webmachine","1.10.3-rmq3.3.5-gite9359c7"},
      {mochiweb,"MochiMedia Web Server","2.7.0-rmq3.3.5-git680dba8"},
      {rabbitmq_management_agent,"RabbitMQ Management Agent","3.3.5"},
      {rabbit,"RabbitMQ","3.3.5"},
      {os_mon,"CPO  CXC 138 46","2.2.14"},
      {inets,"INETS  CXC 138 49","5.9.8"},
      {amqp_client,"RabbitMQ AMQP Client","3.3.5"},
      {xmerl,"XML parser","1.3.6"},
      {mnesia,"MNESIA  CXC 138 12","4.11"},
      {sasl,"SASL  CXC 138 11","2.3.4"},
      {stdlib,"ERTS  CXC 138 10","1.19.4"},
      {kernel,"ERTS  CXC 138 10","2.16.4"}]},
 {os,{unix,linux}},
 {erlang_version,
     "Erlang R16B03-1 (erts-5.10.4) [source] [64-bit] [async-threads:30] [hipe] [kernel-poll:true]\n"},
 {memory,
     [{total,40042936},
      {connection_procs,5440},
      {queue_procs,36744},
      {plugins,275040},
      {other_proc,14015480},
      {mnesia,87352},
      {mgmt_db,58576},
      {msg_index,23896},
      {other_ets,1098048},
      {binary,35496},
      {code,19941789},
      {atom,703377},
      {other_system,3761698}]},
 {alarms,[]},
 {listeners,[{clustering,25672,"::"},{amqp,5672,"::"}]},
 {vm_memory_high_watermark,0.4},
 {vm_memory_limit,416260096},
 {disk_free_limit,50000000},
 {disk_free,2157924352},
 {file_descriptors,
     [{total_limit,924},{total_used,3},{sockets_limit,829},{sockets_used,1}]},
 {processes,[{limit,1048576},{used,180}]},
 {run_queue,0},
 {uptime,61}]
...done.

查看集群状态

[root@rabbitmq01 ~]# rabbitmqctl cluster_status
Cluster status of node rabbit@rabbitmq01 ...
[{nodes,[{disc,[rabbit@rabbitmq01]},
         {ram,[]}]},
 {running_nodes,[rabbit@rabbitmq01]},
 {cluster_name,<<"rabbit@rabbitmq01">>},
 {partitions,[]}]
...done.

4、Rabbitmq 集群添加节点

重启 rabbitmq02机器中 rabbitmq 的服务在 rabbitmq01，rabbitmq03 分别执行

[root@rabbitmq01 ~]# rabbitmqctl stop_app
[root@rabbitmq01 ~]# rabbitmqctl join_cluster --ram rabbit@rabbitmq02
[root@rabbitmq01 ~]# rabbitmqctl start_app
[root@rabbitmq01 ~]# rabbitmq-plugins enable rabbitmq_management
[root@rabbitmq01 ~]# systemctl restart rabbitmq-server.service

[root@rabbitmq03 ~]# rabbitmqctl stop_app
[root@rabbitmq03 ~]# rabbitmqctl join_cluster --ram rabbit@rabbitmq02
[root@rabbitmq03 ~]# rabbitmqctl start_app
[root@rabbitmq03 ~]# rabbitmq-plugins enable rabbitmq_management
[root@rabbitmq03 ~]# systemctl restart rabbitmq-server.service

重启 rabbitmq02

[root@rabbitmq02 ~]# systemctl restart rabbitmq-server.service

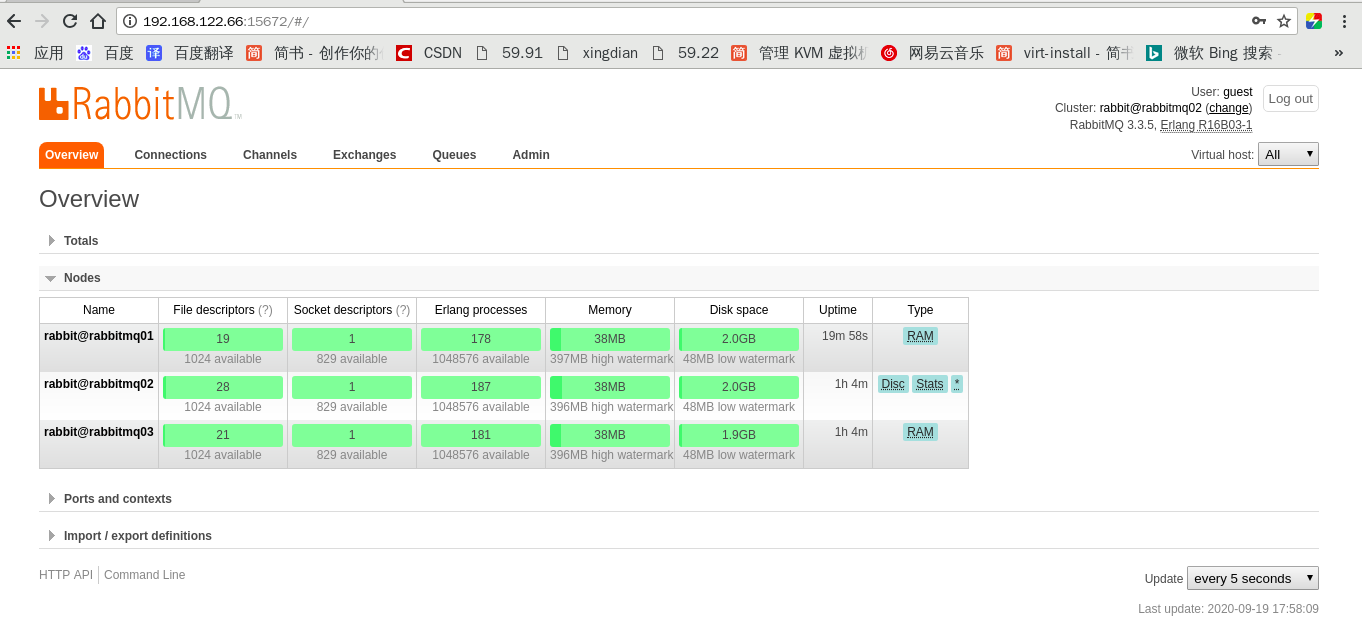

5、打开网页管理页面查看 nodes

在这里插入图片描述

8、搭建 rabbitmq 的镜像高可用模式集群

这一节要参考的文档是：http://www.rabbitmq.com/ha.html
首先镜像模式要依赖 policy 模块，这个模块是做什么用的呢？
policy 中文来说是政策，策略的意思就是要设置那些Exchanges或者queue的数据需要如何复制，同步。

[root@rabbitmq01 ~]# rabbitmqctl set_policy ha-all "^" '{"ha-mode":"all"}'

ha-all：为策略名称。
^{：为匹配符，只有一个}代表匹配所有，^qfedu为匹配名称为qfedu的exchanges或者queue。
ha-mode：为匹配类型，他分为3种模式：
- all-所有（所有的 queue），
- exctly-部分（需配置ha-params参数，此参数为int类型, 比如3，众多集群中的随机3台机器），
- nodes-指定（需配置ha-params参数，此参数为数组类型比如[“rabbit@F”,“rabbit@G”]这样指定为F与G这2台机器。）。

9、部署haproxy，实现访问5672端口时，轮询访问3个节点

1、环境(selinux firewalld)

haproxy1: 192.168.122.65
haproxy2: 192.168.122.180

2、安装haproxy(2 台)

[root@haproxy1 ~]# yum -y install haproxy
[root@haproxy2 ~]# yum -y install haproxy

3、创建 haproxy.conf

haproxy1

[root@haproxy1 ~]# vim /etc/haproxy/haproxy.cfg
global
    log         127.0.0.1 local1
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon
    stats socket /var/lib/haproxy/stats

defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000
listen stats
        bind          0.0.0.0:8888
        mode          http
        stats         enable
        stats         hide-version
        stats uri     /haproxystats
        stats realm   Haproxy\ stats
        stats auth    admin:admin
        stats admin   if TRUE

frontend http-in
        bind 0.0.0.0:5672
        mode tcp
        log global
        option httplog
        option httpclose
        default_backend rabbitmq-server

backend rabbitmq-server
        mode tcp
        balance roundrobin
        server  rabbitmq1 192.168.122.124:5672 maxconn 2000 weight 1  check inter 5s rise 2 fall 2
        server  rabbitmq2 192.168.122.66:5672 maxconn 2000 weight 1  check inter 5s rise 2 fall 2
        server  rabbitmq3 192.168.122.122:5672 maxconn 2000 weight 1  check inter 5s rise 2 fall 2

haproxy2

[root@haproxy2 ~]# vim /etc/haproxy/haproxy.cfg
global
    log         127.0.0.1 local1
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon
    stats socket /var/lib/haproxy/stats

defaults
    mode                    http
    log                     global
    option                  httplog
    option                  dontlognull
    option http-server-close
    option forwardfor       except 127.0.0.0/8
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000
listen stats
        bind          0.0.0.0:8888
        mode          http
        stats         enable
        stats         hide-version
        stats uri     /haproxystats
        stats realm   Haproxy\ stats
        stats auth    admin:admin
        stats admin   if TRUE

frontend http-in
        bind 0.0.0.0:5672
        mode tcp
        log global
        option httplog
        option httpclose
        default_backend rabbitmq-server

backend rabbitmq-server
        mode tcp
        balance roundrobin
        server  rabbitmq1 192.168.122.124:5672 maxconn 2000 weight 1  check inter 5s rise 2 fall 2
        server  rabbitmq2 192.168.122.66:5672 maxconn 2000 weight 1  check inter 5s rise 2 fall 2
        server  rabbitmq3 192.168.122.122:5672 maxconn 2000 weight 1  check inter 5s rise 2 fall 2

3、Haproxy rsyslog 日志配置

haproxy1

[root@haproxy1 ~]# vim /etc/rsyslog.conf
# Provides UDP syslog reception
$ModLoad imudp
$UDPServerRun 514

# Provides TCP syslog reception
$ModLoad imtcp
$InputTCPServerRun 514

local1.*                                                 /var/log/haproxy/redis.log

[root@haproxy1 ~]# mkidr /var/log/haproxy
[root@haproxy1 ~]# systemctl restart rsyslog.service
[root@haproxy1 ~]# systemctl start haproxy
[root@haproxy1 ~]# cat /var/log/haproxy/rabbitmq.log
Sep 19 20:03:18 localhost haproxy[1654]: Proxy stats started.
Sep 19 20:03:18 localhost haproxy[1654]: Proxy http-in started.
Sep 19 20:03:18 localhost haproxy[1654]: Proxy http-in started.
Sep 19 20:03:18 localhost haproxy[1654]: Proxy html-server started.

haproxy2

[root@haproxy2 ~]# vim /etc/rsyslog.conf
# Provides UDP syslog reception
$ModLoad imudp
$UDPServerRun 514

# Provides TCP syslog reception
$ModLoad imtcp
$InputTCPServerRun 514

local1.*                                                 /var/log/haproxy/redis.log

[root@haproxy2 ~]# mkidr /var/log/haproxy
[root@haproxy2 ~]# systemctl restart rsyslog.service
[root@haproxy2 ~]# systemctl start haproxy
[root@haproxy2 ~]# cat /var/log/haproxy/rabbitmq.log
Sep 19 20:03:18 localhost haproxy[1654]: Proxy stats started.
Sep 19 20:03:18 localhost haproxy[1654]: Proxy http-in started.
Sep 19 20:03:18 localhost haproxy[1654]: Proxy http-in started.
Sep 19 20:03:18 localhost haproxy[1654]: Proxy html-server started.

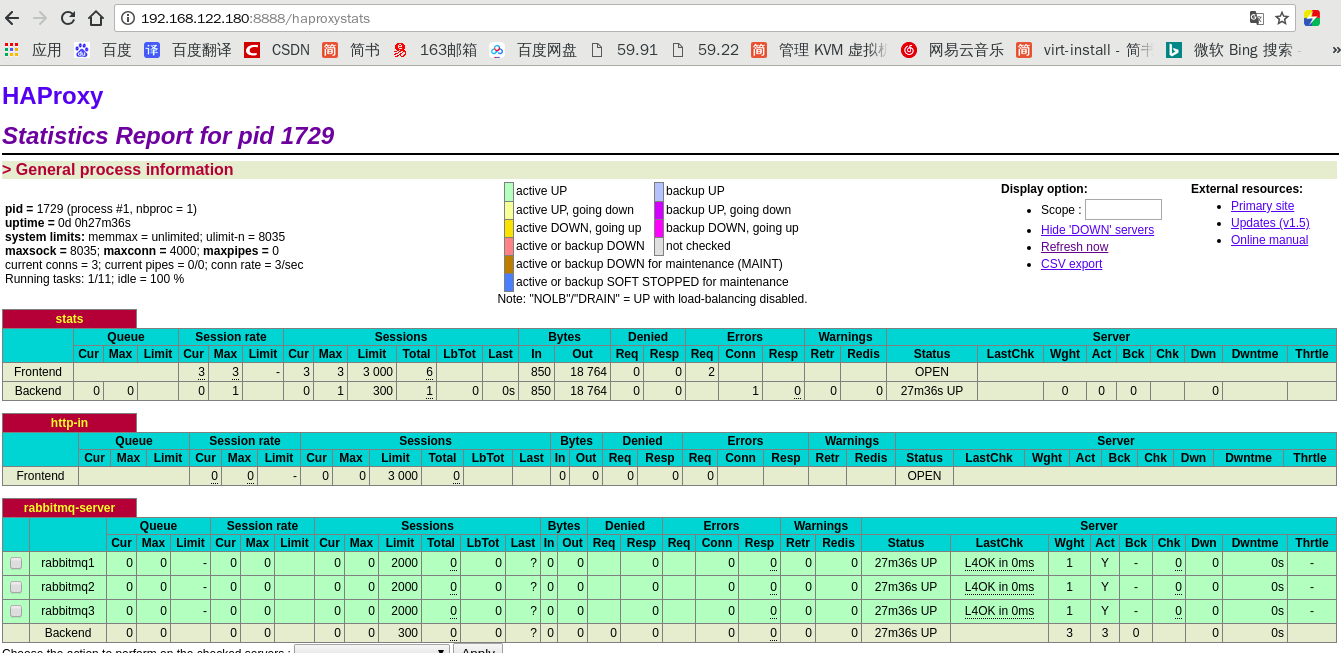

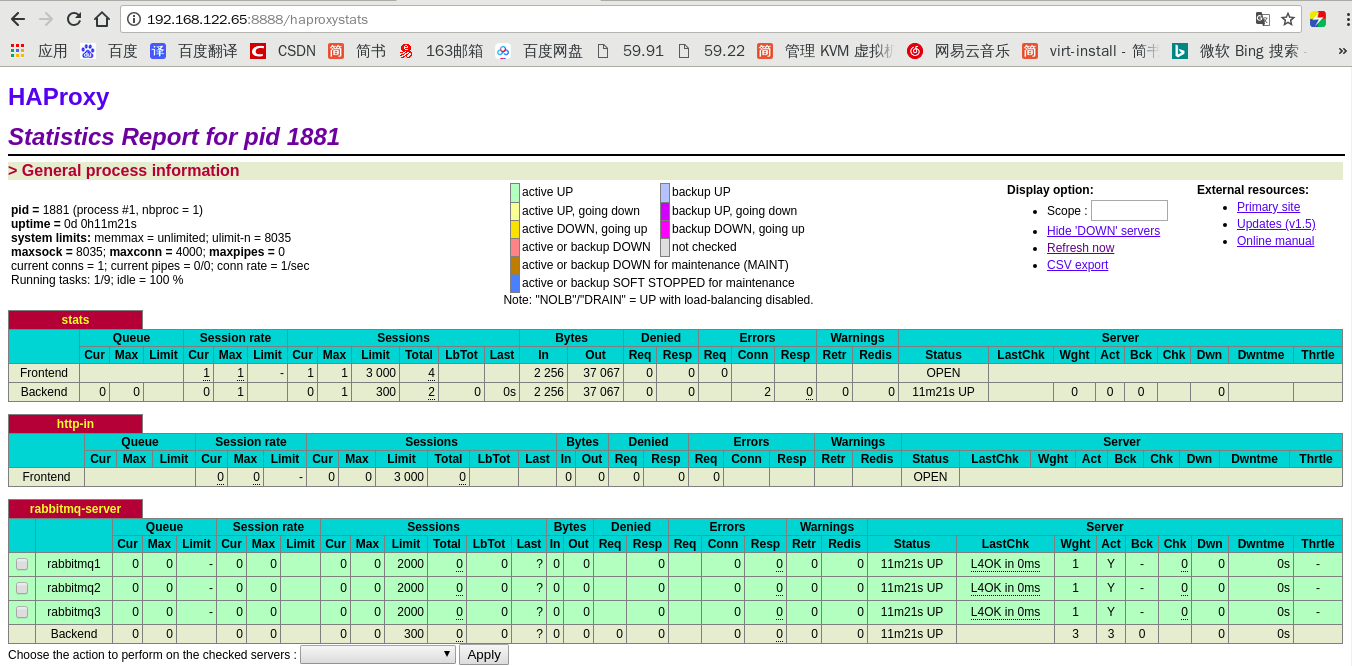

4、haproxy 监控页面访问验证

端口8888 账号密码 admin:admin
192.168.122.65:8888/haproxystats
192.168.122.189:8888/haproxystats
有以下效果

在这里插入图片描述

10、部署Keepalived，实现主从热备、秒级切换

1、环境

两台虚拟机或者选择集群中的任意两个节点配置
keepalived1：192.168.122.65
keepalived2：192.168.122.180
VIP地址：192.168.122.160

2、安装keepalived

[root@haproxy1 ~]# yum -y install keepalived
[root@haproxy2 ~]# yum -y install keepalived

3、修改配置文件

1、keepalived1 配置

[root@haproxy1 ~]# cp /etc/keepalived/keepalived.conf{,.bak}
[root@haproxy1 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id director1
}
vrrp_script check_haproxy {
   script "/etc/keepalived/haproxy_chk.sh"
   interval 5
}

vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 80
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.122.160/24
    }
    track_script {
        check_haproxy
    }
}

2、keepalived2 配置

[root@haproxy2 ~]# cp /etc/keepalived/keepalived.conf{,.bak}
[root@haproxy2 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived

global_defs {
   router_id director2
}
vrrp_script check_haproxy {
   script "/etc/keepalived/haproxy_chk.sh"
   interval 5
}

vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 80
    priority 50
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.122.160/24
    }
    track_script {
        check_haproxy
    }
}

3、健康检测脚本 haproxy_chk.sh

[root@redis1 ~]# vim /etc/keepalived/haproxy_chk.sh
#!/usr/bin/env bash
# test haproxy server running
systemctl status haproxy.service &>/dev/null
if [ $? -ne 0 ];then
    systemctl start haproxy.service &>/dev/null
    sleep 5
    systemctl status haproxy.service &>/dev/null
    if [ $? -ne 0 ];then
        systemctl stop keepalived
    fi
fi

[root@redis2 ~]# vim /etc/keepalived/haproxy_chk.sh
#!/usr/bin/env bash
# test haproxy server running
systemctl status haproxy.service &>/dev/null
if [ $? -ne 0 ];then
    systemctl start haproxy.service &>/dev/null
    sleep 5
    systemctl status haproxy.service &>/dev/null
    if [ $? -ne 0 ];then
        systemctl stop keepalived
    fi
fi

4、开启服务验证是VIP

[root@haproxy2 ~]# systemctl start keepalived
[root@haproxy1 ~]# systemctl start keepalived
[root@haproxy1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 52:54:00:ff:3b:5d brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.65/24 brd 192.168.122.255 scope global dynamic eth0
       valid_lft 2426sec preferred_lft 2426sec
    inet 192.168.122.160/24 scope global secondary eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::227e:ba3f:f915:f16c/64 scope link
       valid_lft forever preferred_lft forever
    inet6 fe80::ec3b:957f:e7e1:f7d7/64 scope link tentative dadfailed
       valid_lft forever preferred_lft forever

本文链接：https://blog.csdn.net/m0_49821830/article/details/108686163

智能推荐

RabbitMQ安装和高可用集群搭建

RabbitMQ安装和高可用集群搭建准备：使用VMware软件搭建3台centos服务器并完成host相关配置，可以使用我的软件地址。链接：https://pan.baidu.com/s/1D-NIyFGLRiLeBXTNqBDe9w 提取码：bn32 由于版本等原因，安装过程容易出现各种莫名其妙的问题，关于软件安装和集群搭建的主要流程部分，我将以1.2...

Mybatis基础（part 1）

一.mybatis调用SQL语句 1.使用XML配置SQL语句在SqlMapConfig.xml配置数据源并指定映射配置文件的位置（每个DAO对应的XML文件，该文件映射了DAO的全限定类名） 2.使用注解配置sql语句在SqlMapConfig.xml配置数据源和class属性（指定被注解的dao全限定类名），在DAO上写注解。用注解来配置，故此处使用class属性指定被注解...

Docker 容器内运行 Dubbo 服务

原文：http://www.aqcoder.com/post/content?id=41 在使用 Docker 容器内运行 Dubbo 服务的时候一个令人很头痛的问题就是服务地址注册。 Docker 容器内有自己的 IP 段，和宿主主机是隔离的，Dubbo 会使用容器内的 IP 注册到 zookeeper 注册中心上。这样其他的服务是无法访问的。方式一：–host 一个很直接的方案就...

Python基础教程一、简介 1.1 python语言介绍 python的创始人：Guido Van Rossum Python下载地址：https://www.python.org/ Python文档下载地址：https://www.python.org/doc/ Pycharm下载地址：https://www.runoob.com/w3cnote/pycharm-windows-instal...

1、Git安装与配置

1、Git安装与配置一：版本控制定义：版本控制是一种记录一个或若干文件内容变化，以便将来查阅特定版本修订情况的系统。为什么要用版本控制：在起初的项目开发中，我们会不断的编写代码，但是，害怕有一天系统突然挂掉了，完蛋，辛苦写的代码就这么没了，所有为了防止这一点，都会开发一点就以目录拷贝的形式保存下来，自己这么1.0、2.0、3.0…的这么去标记，开始的还好，后面的话你压根就不知道...
