Outline

1. where 根据坐标 有目的性的选择
2. scatter_nd 根据坐标 有目的性的更新
3. meshgrid 生成坐标系

where

where（tensor）

a = tf.random.normal([3, 3])

mask = a>0
# <tf.Tensor: id=46, shape=(3, 3), dtype=bool, numpy=
# array([[ True,  True,  True],
#        [False,  True,  True],
#        [ True,  True,  True]])>

tf.boolean_mask(a, mask)
# <tf.Tensor: id=128, shape=(8,), dtype=float32, numpy=
# array([0.469083  , 0.78703344, 2.418932  , 1.9637926 , 0.31090873,
#        0.11894408, 0.70458823, 0.00413397], dtype=float32)>

indices = tf.where(mask)
# <tf.Tensor: id=35, shape=(8, 2), dtype=int64, numpy=
# array([[0, 0],
#        [0, 1],
#        [0, 2],
#        [1, 1],
#        [1, 2],
#        [2, 0],
#        [2, 1],
#        [2, 2]], dtype=int64)>

tf.gather_nd(a, indices)
# <tf.Tensor: id=82, shape=(8,), dtype=float32, numpy=
# array([0.469083  , 0.78703344, 2.418932  , 1.9637926 , 0.31090873,
#        0.11894408, 0.70458823, 0.00413397], dtype=float32)>

注：

1. tf.boolean_mask(a, mask) => mask 同型的掩码。

2. tf.gather_nd(a, indices) => indices 符合维度的坐标。
3. 返回同为 长向量。
4. tf.where(mask) 返回 indices。

where(cond, A, B)

mask
# <tf.Tensor: id=46, shape=(3, 3), dtype=bool, numpy=
# array([[ True,  True,  True],
#        [False,  True,  True],
#        [ True,  True,  True]])>

A = tf.ones([3,3])
# <tf.Tensor: id=178, shape=(3, 3), dtype=float32, numpy=
# array([[1., 1., 1.],
#        [1., 1., 1.],
#        [1., 1., 1.]], dtype=float32)>

B = tf.zeros([3,3])
# <tf.Tensor: id=181, shape=(3, 3), dtype=float32, numpy=
# array([[0., 0., 0.],
#        [0., 0., 0.],
#        [0., 0., 0.]], dtype=float32)>

tf.where(mask, A, B)
# <tf.Tensor: id=308, shape=(3, 3), dtype=float32, numpy=
# array([[1., 1., 1.],
#        [0., 1., 1.],
#        [1., 1., 1.]], dtype=float32)>

注：

1. A，B 同形
2. cond[i, j, …] 为 True 取 A[i, j, …] ; False 取 B[i, j, …]

scatter_nd

• tf.scatter_nd(
• indices,
• updates,
• shape

one dim

              

      updates                  shape                      output

indices = tf.constant([[4],[3],[1],[7]])
updates = tf.constant([9, 10, 11, 12])
shape = tf.constant([8])

tf.scatter_nd(indices, updates, shape)
# <tf.Tensor: id=351, shape=(8,), dtype=int32, numpy=array([ 0, 11,  0, 10,  9,  0,  0, 12])>

multi-dim

          
      updates                 shape                  output

indices = tf.constant([[0],[2]])
updates = tf.constant([   [[5, 5, 5, 5],[6, 6, 6, 6],
                           [7, 7, 7, 7],[8, 8, 8, 8]],
                          [[5, 5, 5, 5], [6, 6, 6, 6],
                          [7, 7, 7, 7], [8, 8, 8, 8]]])


shape = tf.constant([4, 4, 4])
tf.scatter_nd(indices, updates, shape)
# <tf.Tensor: id=1087, shape=(4, 4, 4), dtype=int32, numpy=
# array([[[5, 5, 5, 5],
#         [6, 6, 6, 6],
#         [7, 7, 7, 7],
#         [8, 8, 8, 8]],
#        [[0, 0, 0, 0],
#         [0, 0, 0, 0],
#         [0, 0, 0, 0],
#         [0, 0, 0, 0]],
#        [[5, 5, 5, 5],
#         [6, 6, 6, 6],
#         [7, 7, 7, 7],
#         [8, 8, 8, 8]],
#        [[0, 0, 0, 0],
#         [0, 0, 0, 0],
#         [0, 0, 0, 0],
#         [0, 0, 0, 0]]])>

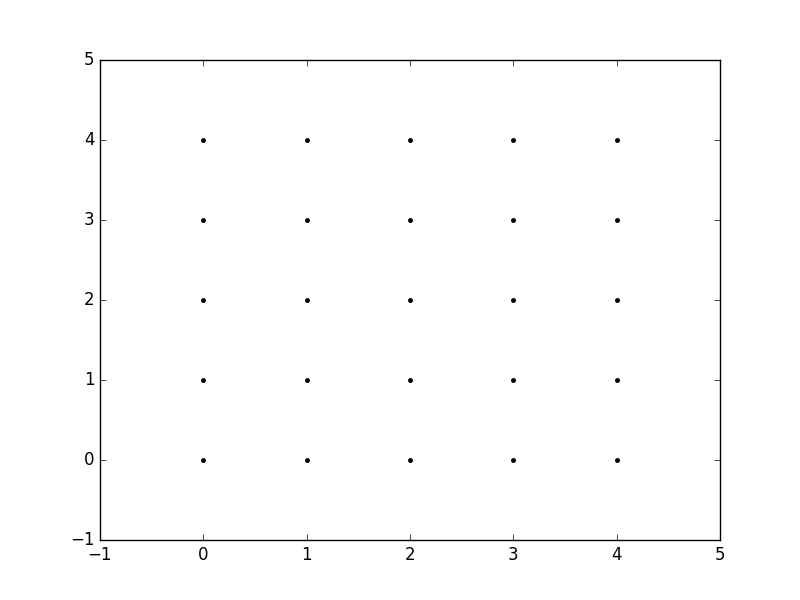

meshgrid

• [-2, -2]
• [-1, -2]
• [ 0, -2]
• [-2,-1]
• [-1,-1]
• …
• [ 2, 2]


points

• [y, x, 2]
  • [5, 5, 2]
• [N, 2]

numpy 实现

import numpy as np
def meshgrid():
    points = []

    for y in np.linspace(-2, 2, 5):
        for x in np.linspace(-2, -2, 5):
            points.append([x,y])
    return np.array(points)

注：

1. numpy 实现 无法GPU加速。
2. 用 tensorflow 实现 可 GPU 加速。

tensorflow 实现

y = tf.linspace(-2., 2, 5)
# <tf.Tensor: id=65, shape=(5,), dtype=float32, numpy=array([-2., -1.,  0.,  1.,  2.], dtype=float32)>
x = tf.linspace(-2., 2, 5)
# <tf.Tensor: id=90, shape=(5,), dtype=float32, numpy=array([-2., -1.,  0.,  1.,  2.], dtype=float32)>

points_x, points_y = tf.meshgrid(x, y)
points_x.shape
points_x
<tf.Tensor: id=206, shape=(5, 5), dtype=float32, numpy=
array([[-2., -1.,  0.,  1.,  2.],
       [-2., -1.,  0.,  1.,  2.],
       [-2., -1.,  0.,  1.,  2.],
       [-2., -1.,  0.,  1.,  2.],
       [-2., -1.,  0.,  1.,  2.]], dtype=float32)>

points_y
<tf.Tensor: id=207, shape=(5, 5), dtype=float32, numpy=
array([[-2., -2., -2., -2., -2.],
       [-1., -1., -1., -1., -1.],
       [ 0.,  0.,  0.,  0.,  0.],
       [ 1.,  1.,  1.,  1.,  1.],
       [ 2.,  2.,  2.,  2.,  2.]], dtype=float32)>

points = tf.stack([points_x, points_y], axis=2)
# <tf.Tensor: id=368, shape=(5, 5, 2), dtype=float32, numpy=
# array([[[-2., -2.],
#         [-1., -2.],
#         [ 0., -2.],
#         [ 1., -2.],
#         [ 2., -2.]],
#        [[-2., -1.],
#         [-1., -1.],
#         [ 0., -1.],
#         [ 1., -1.],
#         [ 2., -1.]],
#        [[-2.,  0.],
#         [-1.,  0.],
#         [ 0.,  0.],
#         [ 1.,  0.],
#         [ 2.,  0.]],
#        [[-2.,  1.],
#         [-1.,  1.],
#         [ 0.,  1.],
#         [ 1.,  1.],
#         [ 2.,  1.]],
#        [[-2.,  2.],
#         [-1.,  2.],
#         [ 0.,  2.],
#         [ 1.,  2.],
#         [ 2.,  2.]]], dtype=float32)>

plot

$z = \sin (x) + \sin(y)$z=sin(x)+sin(y)

import tensorflow as tf
import os
import matplotlib.pyplot as plt
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'

def func(x):
    """
    :param x: [b, 2]
    :return:
    """
    z = tf.math.sin(x[...,0]) + tf.math.sin(x[...,1])

    return z


x = tf.linspace(0., 2*3.14, 500)
y = tf.linspace(0., 2*3.14, 500)
# [50, 50]
point_x, point_y = tf.meshgrid(x, y)
# [50, 50, 2]
points = tf.stack([point_x, point_y], axis=2)
# points = tf.reshape(points, [-1, 2])
print('points:', points.shape)
z = func(points)
print('z:', z.shape)

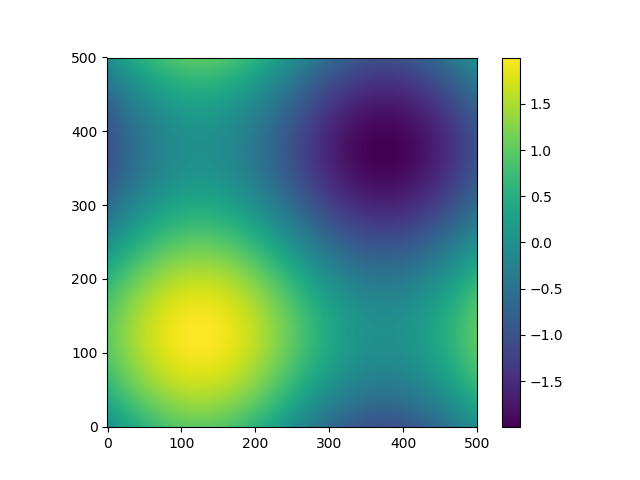

plt.figure('plot 2d func value')
plt.imshow(z, origin='lower', interpolation='none')
plt.colorbar()

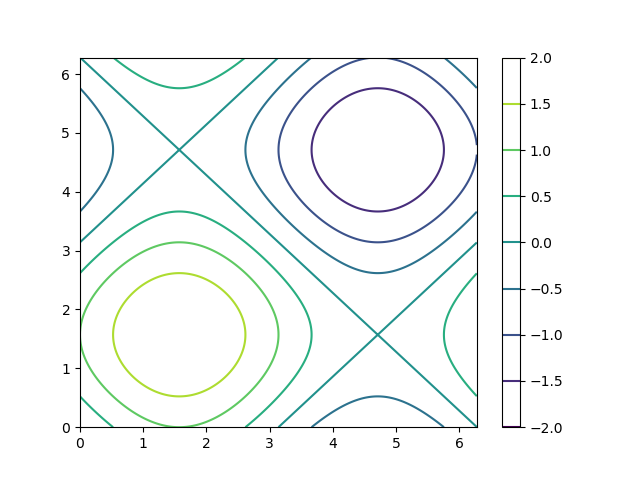

plt.figure('plot 2d func contour')
plt.contour(point_x, point_y, z)
plt.colorbar()
plt.show()

结果：
