下载CXF

http://cxf.apache.org/download.html

生成客户端代码

tar -zxvf apache-cxf-3.2.7.tar.gz
cd apache-cxf-3.2.7/bin wsdl2java
-client -server -impl -p 代码包路径 -d 代码生成路径 wdsl服务url或者wdsl文件路径

• 说明：先启动泛微E9，访问 wsdl 是不是可以成功访问
  http://127.0.0.1:80/services/WorkflowService?wsdl

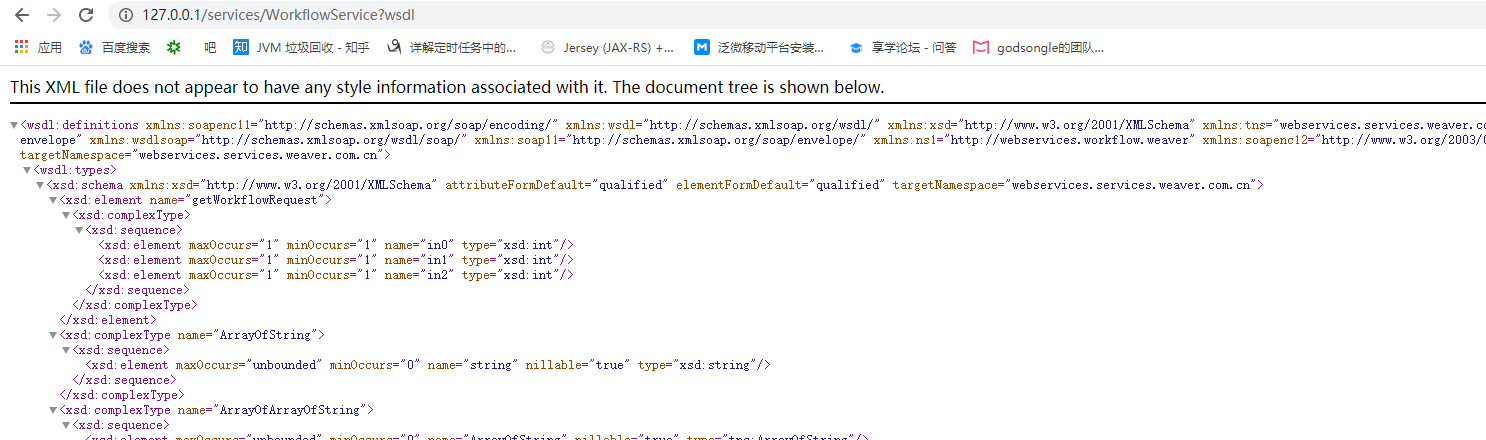

  端口写自己的访问E9的端口，展示效果为：


• 样例：
  wsdl2java -d E:\code\createWorkflow\src -client http://127.0.0.1:80/services/WorkflowService?wsdl


• idea 项目打开效果


编写测试代码

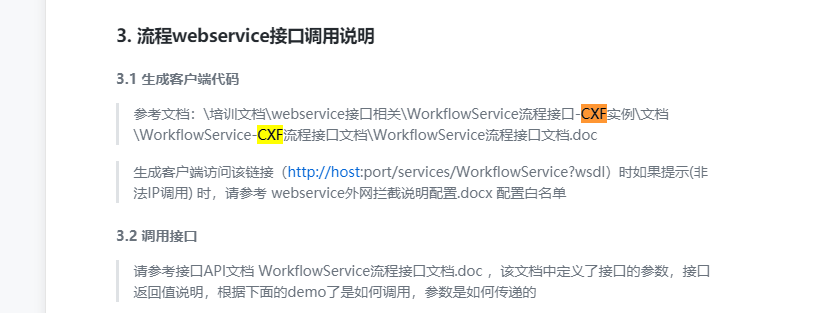

• 参考网页
• 流程接口文档

根据流程3 中的代码修改成自己对应流程的代码

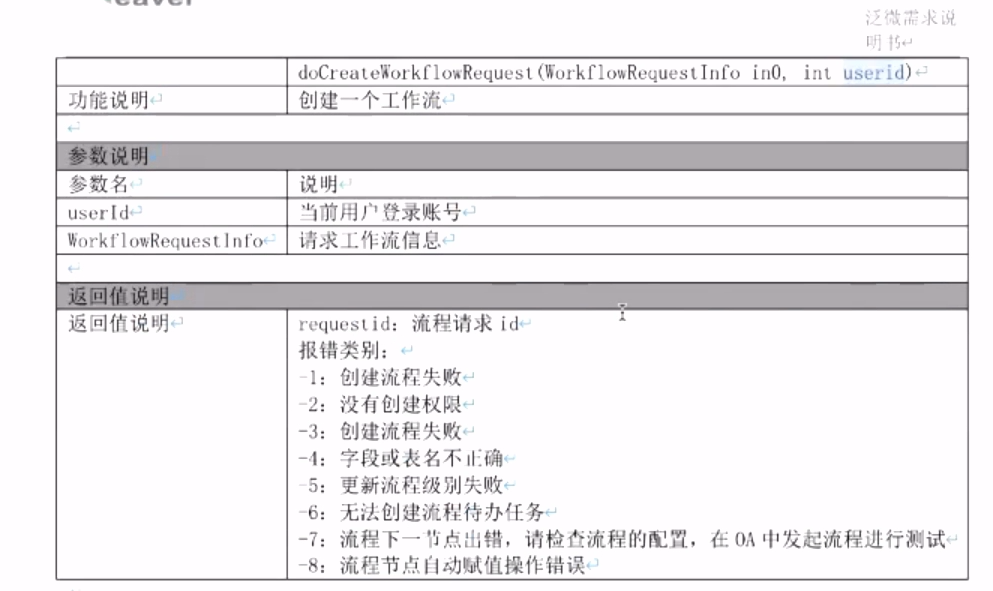

• 创建流程的参数一级对应的错误码

• 调用成功返回结果(流程id)：

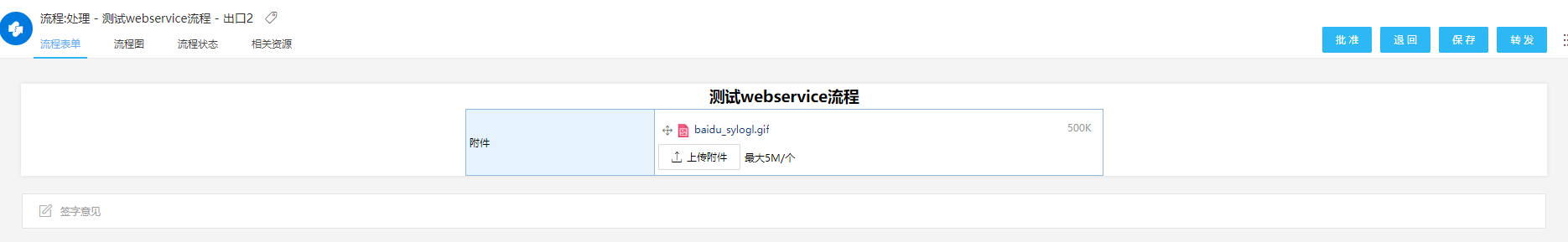

• 登陆创建的账号查看效果


具体代码

import cn.com.weaver.services.webservices.WorkflowService;
import weaver.workflow.webservices.*;

/**
 * @program: ecology_zp
 * @author: Mr.zeng
 * @create: 2020-12-16 11:53
 * 创建流程测试
 **/
public class DoCreateRequestTest {
    public static void main(String[] args) {
        try{
            new DoCreateRequestTest().execute1();
        }catch (Exception e){
            e.printStackTrace();
        }
    }
    public void execute1() {
        ObjectFactory factory = new ObjectFactory();
        WorkflowService service = new WorkflowService();

        WorkflowRequestInfo workflowRequestInfo = new WorkflowRequestInfo();//工作流程请求信息

        int userid = 21;//用户ID  数据库中用户id
        //		workflowRequestInfo.setRequestId(String.valueOf(1918557));//流程请求ID-创建流程时自动产生 不需要传此项
        workflowRequestInfo.setCanView(true);//显示
        workflowRequestInfo.setCanEdit(true);//可编辑

        workflowRequestInfo.setRequestName(factory.createWorkflowRequestInfoRequestName("流程请求标题-webservice-test-axis2"));
        workflowRequestInfo.setRequestLevel(factory.createWorkflowRequestInfoRequestLevel("0"));//请求重要级别 0：正常 1：重要 2：紧急
        workflowRequestInfo.setCreatorId(factory.createWorkflowRequestInfoCreatorId("21"));//创建者ID 创建流程时为必输项

        WorkflowBaseInfo workflowBaseInfo = new WorkflowBaseInfo();//工作流信息
        workflowBaseInfo.setWorkflowId(factory.createWorkflowBaseInfoWorkflowId("22"));//流程ID
        workflowBaseInfo.setWorkflowName(factory.createWorkflowBaseInfoWorkflowName("测试webservice流程"));//流程名称
        //		workflowBaseInfo.setWorkflowTypeId("1951");//流程类型id
        workflowBaseInfo.setWorkflowTypeName(factory.createWorkflowBaseInfoWorkflowTypeName("测试"));//流程类型名称
        workflowRequestInfo.setWorkflowBaseInfo(factory.createWorkflowRequestInfoWorkflowBaseInfo(workflowBaseInfo));

        /****************main table start*************/
        WorkflowMainTableInfo workflowMainTableInfo = new WorkflowMainTableInfo();//主表
        WorkflowRequestTableRecord[] workflowRequestTableRecord = new WorkflowRequestTableRecord[1];//主表字段只有一条记录
        WorkflowRequestTableField[] workflowRequestTableFields = new WorkflowRequestTableField[1];//主的4个字段


        workflowRequestTableFields[0]= new WorkflowRequestTableField();
        workflowRequestTableFields[0].setFieldName(factory.createWorkflowRequestTableFieldFieldName("fj"));//附件
        workflowRequestTableFields[0].setFieldType(factory.createWorkflowRequestTableFieldFieldType("http:baidu_sylogl.gif"));//http:开头代表该字段为附件 多附件用baidu_sylogl.gif|baidu_sylog1l.gif分隔
        workflowRequestTableFields[0].setFieldValue(factory.createWorkflowRequestTableFieldFieldValue("http://www.baidu.com/img/fddong_e2dd633ee46695630e60156c91cda80a.gif"));
        workflowRequestTableFields[0].setView(true);
        workflowRequestTableFields[0].setEdit(true);

        ArrayOfWorkflowRequestTableField arrayOfWorkflowRequestTableField=new ArrayOfWorkflowRequestTableField();
        arrayOfWorkflowRequestTableField.getWorkflowRequestTableField().add(workflowRequestTableFields[0]);


        WorkflowRequestTableRecord workflowRequestTableRecord1 = new WorkflowRequestTableRecord();

        workflowRequestTableRecord1.setWorkflowRequestTableFields(factory.createWorkflowRequestTableRecordWorkflowRequestTableFields(arrayOfWorkflowRequestTableField));
        ArrayOfWorkflowRequestTableRecord arrayOfWorkflowRequestTableRecord = new ArrayOfWorkflowRequestTableRecord();
        arrayOfWorkflowRequestTableRecord.getWorkflowRequestTableRecord().add(workflowRequestTableRecord1);
        workflowMainTableInfo.setRequestRecords(factory.createWorkflowMainTableInfoRequestRecords(arrayOfWorkflowRequestTableRecord));
        workflowRequestInfo.setWorkflowMainTableInfo(factory.createWorkflowRequestInfoWorkflowMainTableInfo(workflowMainTableInfo));

//        ArrayOfWorkflowDetailTableInfo arrayOfWorkflowDetailTableInfo = new ArrayOfWorkflowDetailTableInfo();
//        arrayOfWorkflowDetailTableInfo.getWorkflowDetailTableInfo().add(workflowDetailTableInfo[0]);
//        arrayOfWorkflowDetailTableInfo.getWorkflowDetailTableInfo().add(workflowDetailTableInfo[1]);
//        workflowRequestInfo.setWorkflowDetailTableInfos(factory.createWorkflowRequestInfoWorkflowDetailTableInfos(arrayOfWorkflowDetailTableInfo));
        /****************detail table end*************/
        String response = service.getWorkflowServiceHttpPort().doCreateWorkflowRequest(workflowRequestInfo,userid);
        System.out.println("返回结果："+response);
    }


}

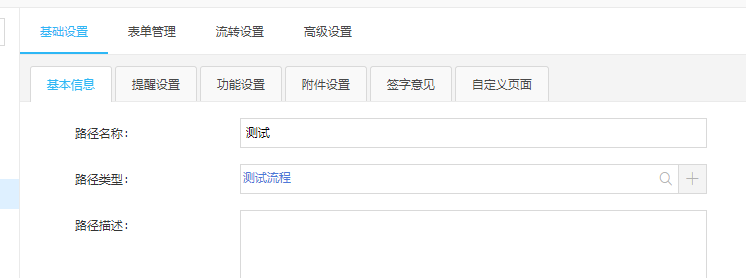

ps:用户id、流程id在数据库中查，名称和类型在表单中都可以看到
